GEZHI Photonics provides 1x1, 1x2, 2x2 Bypass, 2x2 Full, Dual 1x2, Dual 2x2 Bypass, Dual 2x2 Full, 1x4, 1x8 Optical Switches
Micro Mechanical Fiber Optic Switch family offers the most affordable high performance optical switch products. It provides a robust method of altering the light path, this series of products has a drastically simplified platform configuration offering high reliability and low production cost. Currently configurations include 1×1, 1×2, 1×8, 2×2, and 4×4 as well as dual 1×2 and 2×2 bypass configurations for single mode fibers, multimode, and polarization maintain fiber as we as dual window operation.
Optical Line Protection System (OLP) uses vacant optical fiber from different route to build a backup path. By real-time monitoring the power status in working fiber, it can automatically switch from working fiber to backup fiber when the power value of working fiber lower than a user defined threshold . OLP will provide you a more reliable, flexible and high secure optical transmission network .It is widely used for protecting backbone and important business line.

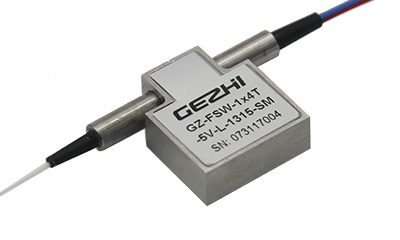

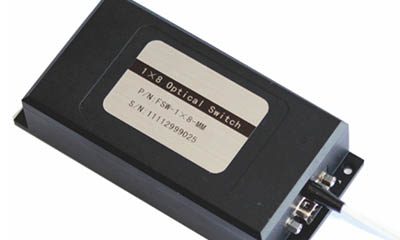

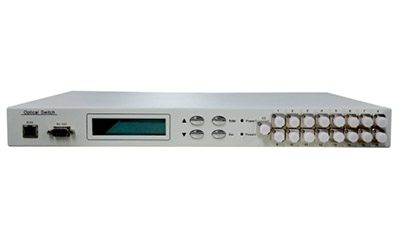

1×N Optic switch is a kind of functional component, with the ability of switching optical route. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc.

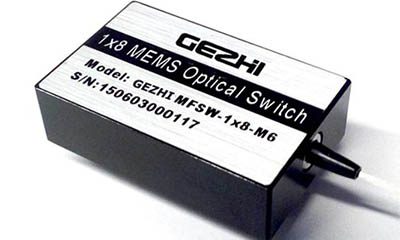

Based on Si micro-machined switching cores, the MEMS Fiber Optic Switch family features industrial leading performance of high reliability of over billion switching cycles, latching, low cost. The switches have no organic materials in the light path. The switching state is highly stable against environmental variations of temperature and vibration due to its unique design. With a built-in driving circuit, they are conveniently actuated by 5V electrical pulses. This series of switches is designed to meet the most demanding Carrie-class and out-door optical switching applications.

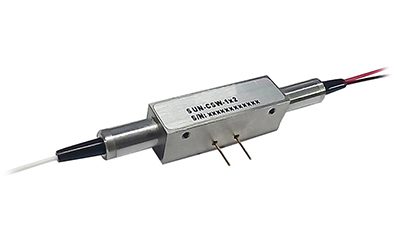

Magneto fiber optic switch has been widely researched due to its capabilities handling large beam cross sections, operating at low voltages, featured as low insertion loss and intrinsic non-reciprocity.

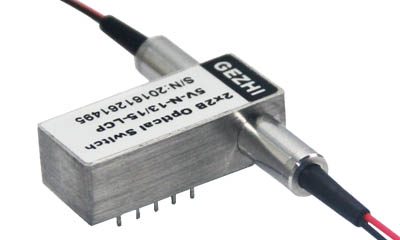

GEZHI Bypass optical switch is designed for use in optical fiber communication networks and measurement instruments.
Used in optical switching, configuration optical add/drop multiplexer (OADM), optical fiber ring protection and optical cross and connection system.
Used in optical switching, configuration optical add/drop multiplexer (OADM), optical fiber ring protection and optical cross and connection system.
GEZHI 1x1 on/off fiber optic switch's common applications are optical routing, system bypass, network cut off switch, and fiber optic testing.
GEZHI Optic Switches enable you to accelerate the reduction of total OPEX and CAPEX improving the networks reliability and enhancing the network operation.

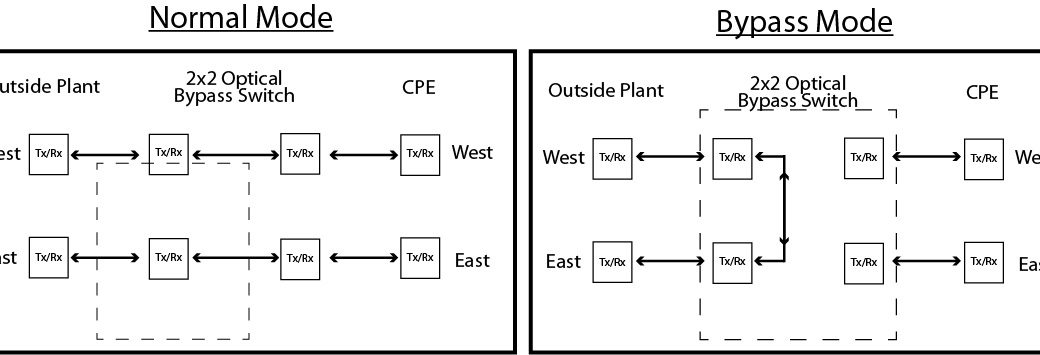

2x2 Optical Bypass Switches are used in multidrop applications to bypass a node in the event of a power failure or for maintenance. Bypass may also be triggered by an external contact from other monitoring systems.
Optical switch is a device(mechanical, opto-mechanical, or electronic types) used to open or close an optical circuit.
