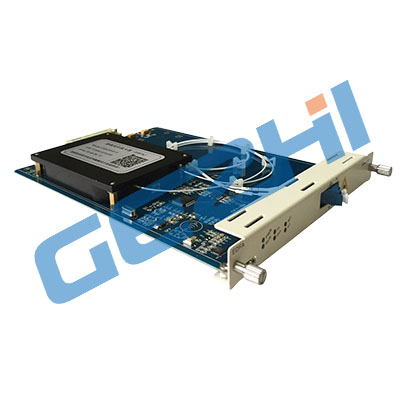

EDFA Multi-channel erbium doped fiber amplifier

■Product Description

The product is multi-channel EDFA of  high flattening and high stable output.  The kernel component of the product is high availability pump laser and high-performance gain flattening filters. The product has high stable output, high gain flatness and high reliability by using unique APC (automatic power control) and ATC (automatic temperature control). The system’s flatness and noise can achieve the best optimization by the gain flattening filters of professional design. The system is convenient to regulation and display, reliable, intelligent by using high stable and high precision MPU.

■Applications

♦       C-band 40/80CH DWDM

♦       Other optical systems

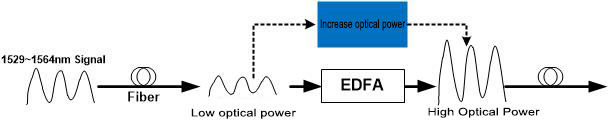

 EDFA APP.jpg

■Product features

♦       Low-noise high flatness design

♦       Adjustable output power

♦       High precision ATC keep system stable operation

♦       Precision ADC / APC circuit keeps the output Power stability

♦       Card design highly integrated, space-saving cabinet

♦       Expansion is very convenient

♦       Strict accordance with Bellcore GR-1312-CORE requirement for design

■Performance index

Parameters

Unit

Symbol

Min

Typ

Parameters

Working Wavelength

nm

λc

1529

1550

1564

Output Optical Power

dBm

Po

—–

—–

20

Input   Optical Power

dBm

Pi

-35

—–

6

Gain

dB

G

—–

20

33

Noise Figure

dB

GF

—–

1

—–

flatness

dB

NF

—–

4.5

6

Optical   output power stability

dB

ΔPo

—–

±0.05

±0.1

Input   optical Isolation

dB

ISOi

30

—–

—–

Out   optical Isolation

dB

ISOo

30

—–

—–

Return   Loss

dB

RL

—–

—–

-45

PDG

dB

PDG

—–

—–

0.3

PDL

ps

PMD

—–

—–

0.5

Power Consumption

W

P

—–

—–

3


■Product ordering Information

P/N

–

Type

Application

Input   power

Output   Poweer

Gain

–

Connector

EA

2: Multi Channel

1：BA

1：-12~+8dBm

…

10：10dB

LP：LC/PC

2：LA

2：-28~-3dBm

16：﹢16dBm

–

3：PA

3：-30~-5dBm

20：﹢20dBm

33：33dB

5: Customize

4：-35~-10dBm
