4×4 Optical Switches
Description
GEZHI Photonics’ 4×4 Mechanical Fiber Optic Switch (4×4 Optical Switch) support all wavelength at 1260nm~1650nm or 850nm Multimode wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.
|
Features Compact design, Miniature size Short switching time Bi-directionalLow optical distortions Low cross talk, Low Insertion Loss Wide operating wavelength Range |
Applications R&D in Laboratory System monitoring Metropolitan Area Network Network protection and restoration Instrumentation, testing, and measurement |
Technical Paremeter
|
Parameters |
GZ-FSW-4×4 |
|
|
Operating Wavelength |
nm |
1260~1620(SM)、850(MM) |
|
Insertion Loss |
dB |
≤1.0 |
|
Wavelength Dependent Loss |
dB |
≤0.40 |
|
Polarization Dependent Loss |
dB |
≤0.05 |
|
Temperature Dependent Loss |
dB |
≤0.20 |
|
Return Loss |
dB |
SM≥50 MM≥30 |
|
Cross Talk |
dB |
SM≥55 MM≥35 |
|
Switch Time |
ms |
≤8 |
|
Repeatability |
dB |
≤±0.02 |
|
Durability |
times |
≥107 |
|
Operating Voltage |
V |
3 or 5 |
|
Switch Type |
Non-Latching/Latching |
|
|
Operating Temperature |
℃ |
－20~＋70 |
|
Storage Temperature |
℃ |
－40~＋85 |
|
Optical Power |
mW |
≤500 |
|
Dimension |
mm |
52.7.0L×37.2W×10.0H |
Pins

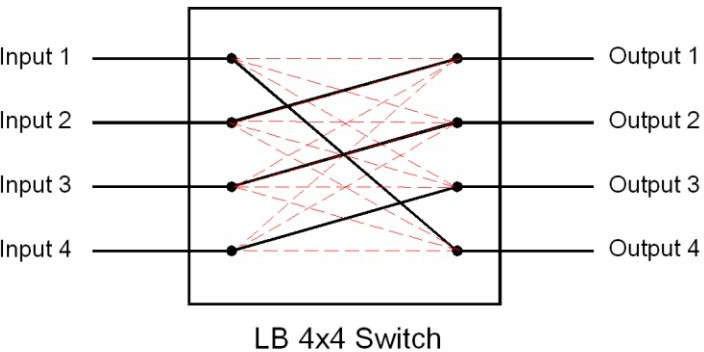

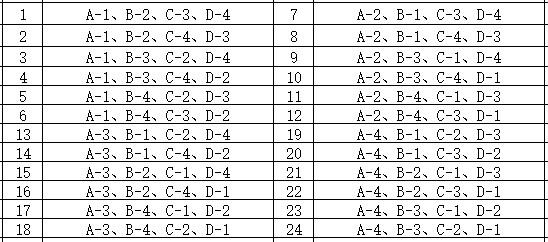

Optical Route

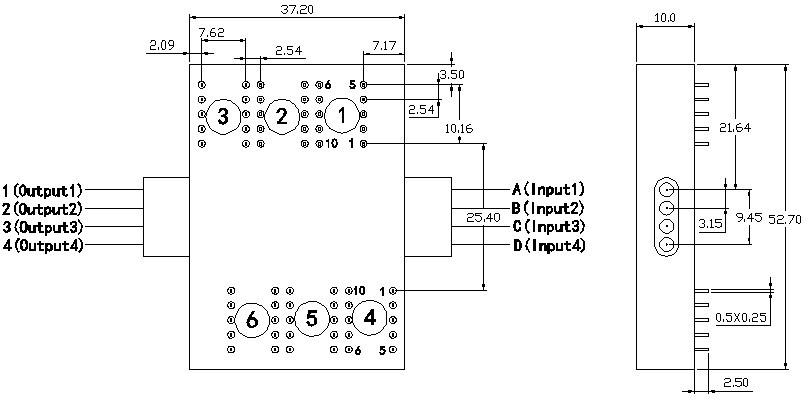

Demension:
Ordering Information
|
Mode |
Wavelength |
Voltage Type |
Control Model |
Fiber Type |
Fiber Diameter |
Fiber Length |
Connector |
|
S=SM M=MM |
85=850nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC X=Others |
